Embossed polycarbonate sheet is widely used in: industrial plants, public buildings, civil building lighting or rainproof shading, commercial building interior and exterior decoration; modern railway stations, aviation, port living rooms, passage ceilings, gardens, indoor breeding greenhouses, garden entertainment venues, pavilions, corridors , road sign advertising, light box advertising, exhibition hall exhibition layout, indoor partition or screen decoration, etc.

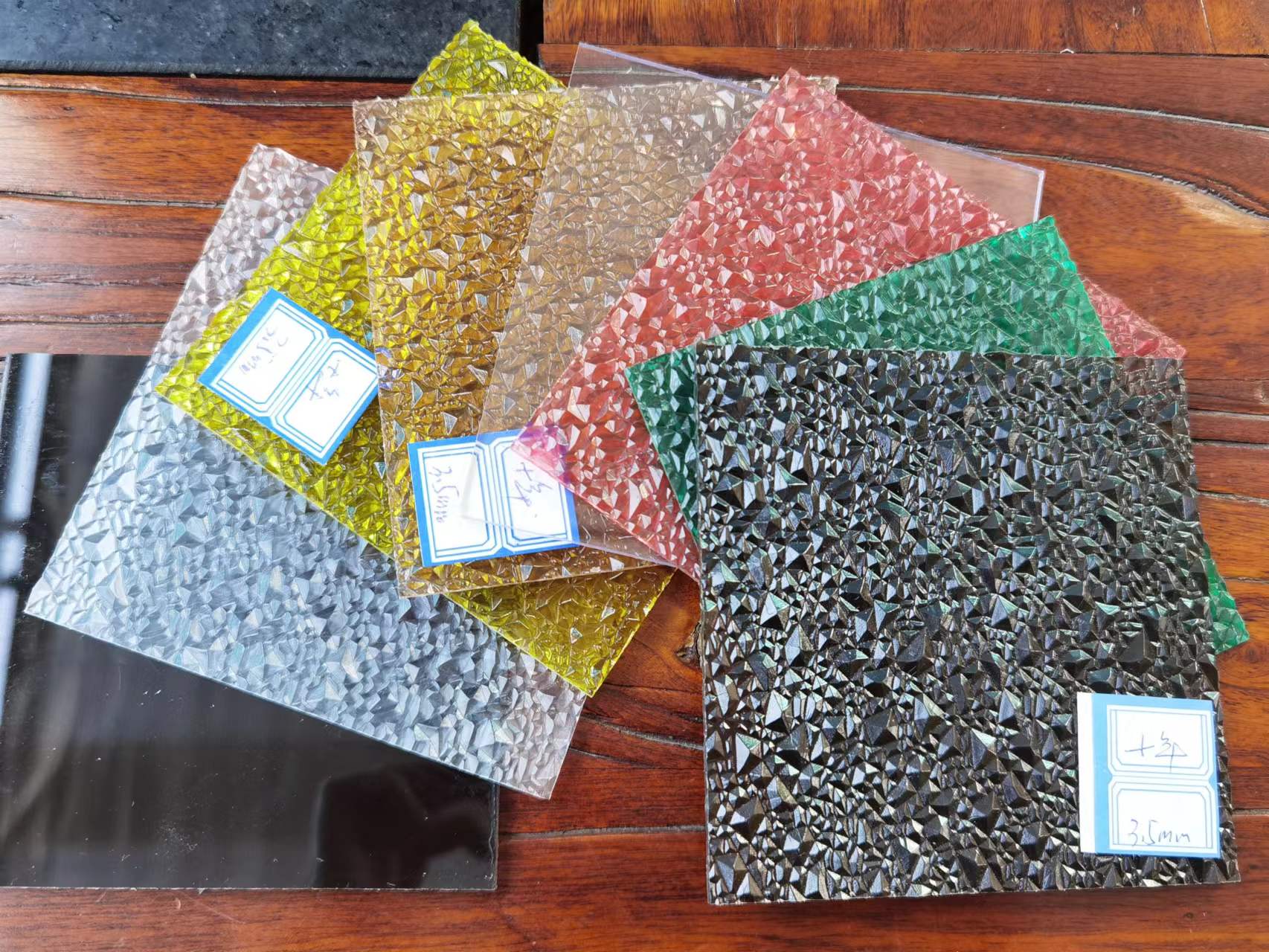

polycarbonate embossed sheet

    Based on the smooth flat solid polycarbonate sheet, the embossed polycarbonate sheet adds a three-dimensional concave and convex effect through uneven mold rollers. The particle texture on the surface can directly reflect and disperse light, making it gentle and reducing light pollution. Due to its special external structure, it has irregular or regular grain patterns such as diamond pattern and litchi pattern. PC embossed polycarbonate sheet is one of the engineering raw materials with the best application prospects in the world. It is a colorless or yellowish thermoplastic factory raw material with various colors, non-toxic, tasteless and high transparency.

It has excellent physical and mechanical properties, especially excellent impact resistance, tensile, bending and high compressive strength; good heat resistance, low temperature resistance, stable mechanical properties and stable dimensions, and can be used for a long time at minus 40°C to high temperature 120°C. Use; no obvious melting point, melting state at 220~230℃; self-extinguishing material; good light and temperature weather resistance.

    High Purity: New materials are produced without recycled and recycled materials. The transparency of clear embossed polycarbonate sheet can reach more than 82%.

Not afraid of being smashed: embossed polycarbonate sheet is 250-300 times stronger than ordinary glass and 30 times stronger than acrylic board of the same thickness. Simulated hail impact test: Simulate hail impact on the simulated hail impact testing machine. When a nylon ball with a diameter of 20mm (weight 4.8g) is launched to the sample version at a speed of 21m/s, observe the degree of damage to the sample. The results showed that the glass and acrylic had been shattered or shattered. In real life, the final velocity of hailstones with a diameter of 20mm can reach 21m/s.

    Aging resistance: There is a UV co-extruded layer of embossed polycarbonate sheet products on one side of the PC. The thickness is up to 50 μm, which can block the passage of ultraviolet rays, so it has good weather resistance. The side with anti-UV treatment layer must face the sun during installation. The service life of the UV layer can be adjusted according to the actual usage scenario or construction budget.

Light weight: The specific gravity of embossed polycarbonate sheet is only half that of ordinary glass, saving the cost of transportation, handling, installation and support frames.

   Self-extinguishing when exposed to fire: The ignition point of embossed polycarbonate sheet is 580°C, and the flame-retardant material will automatically extinguish when exposed to fire. It will not cause harmful gases when burning and will not promote the spread of fire. GB8624-1997 is flame retardant level B; V0 level flame retardant boards can be customized and produced.

    Cold-formed shape: embossed polycarbonate sheets can be cold-formed at the construction site according to the design drawings, and installed into arches, semi-circular roofs and windows. The minimum bending radius is 100 times the thickness of the plate used, and hot bending is also possible.
